Relay Pumps

Hann Reserve, Bamban Tarlac

— Scope of Work

Project Overview

The scope of work comprised the complete structural construction of 12 relay pump tanks, from lean concrete placement through to the casting of the top slabs. The project included 8 tanks constructed based on typical design configurations and 4 tanks with varying structural designs.

Each relay pump structure had an average height of approximately 7 meters, presenting significant execution and safety challenges. Working at this elevation required strict adherence to height-safety protocols, and comprehensive supervision to ensure full compliance with HSE standards throughout all phases of construction.

The works were successfully completed across all designated areas in full compliance with project quality requirements and safety standards, reflecting our commitment to excellence, precision, and safe project delivery.

Duration: 1 month / Relay Pump
Floor Area: 50.225 sq.m.

— Project Delivery

Behind the Build

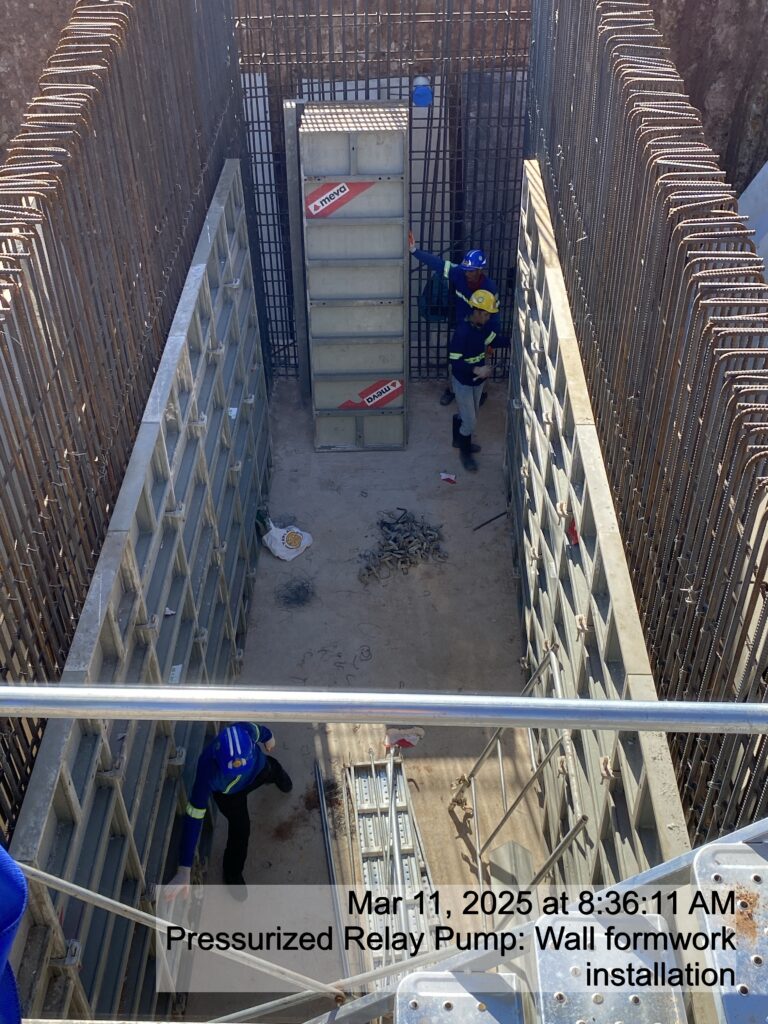

pressurized relay pump: wall formwork installation
Pressurized Relay Pump: Wall formwork installation

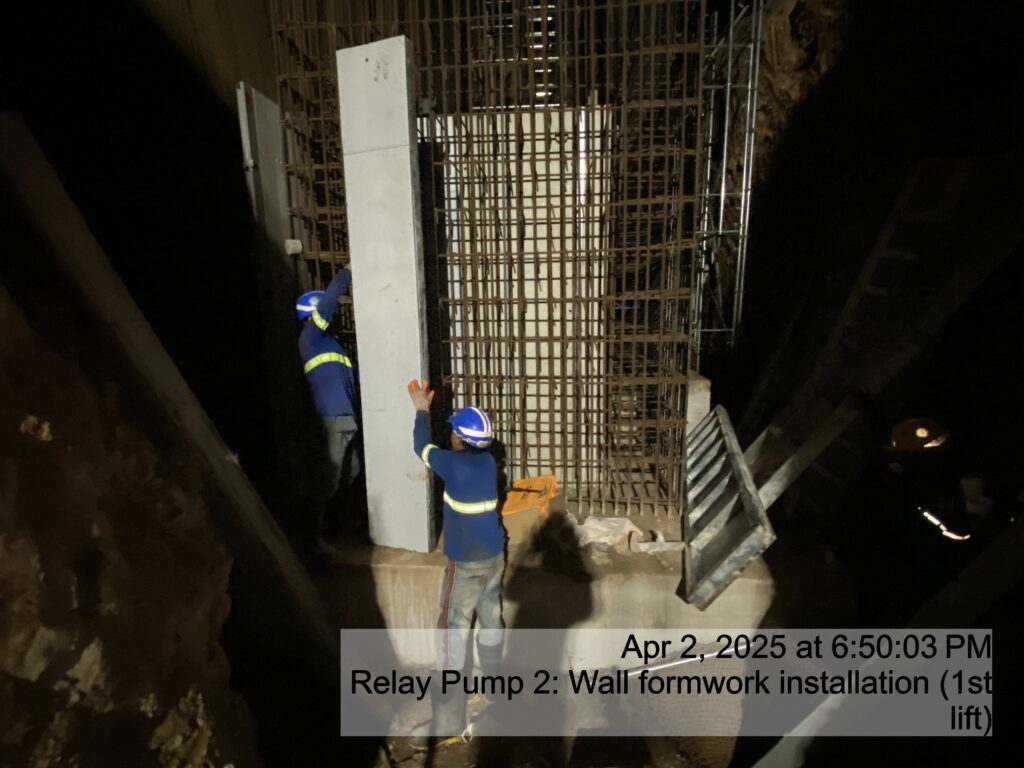

relay pump 2: wall formwork installation (1st lift)
Relay Pump 2: Wall formwork installation (1st lift)
tc 00498

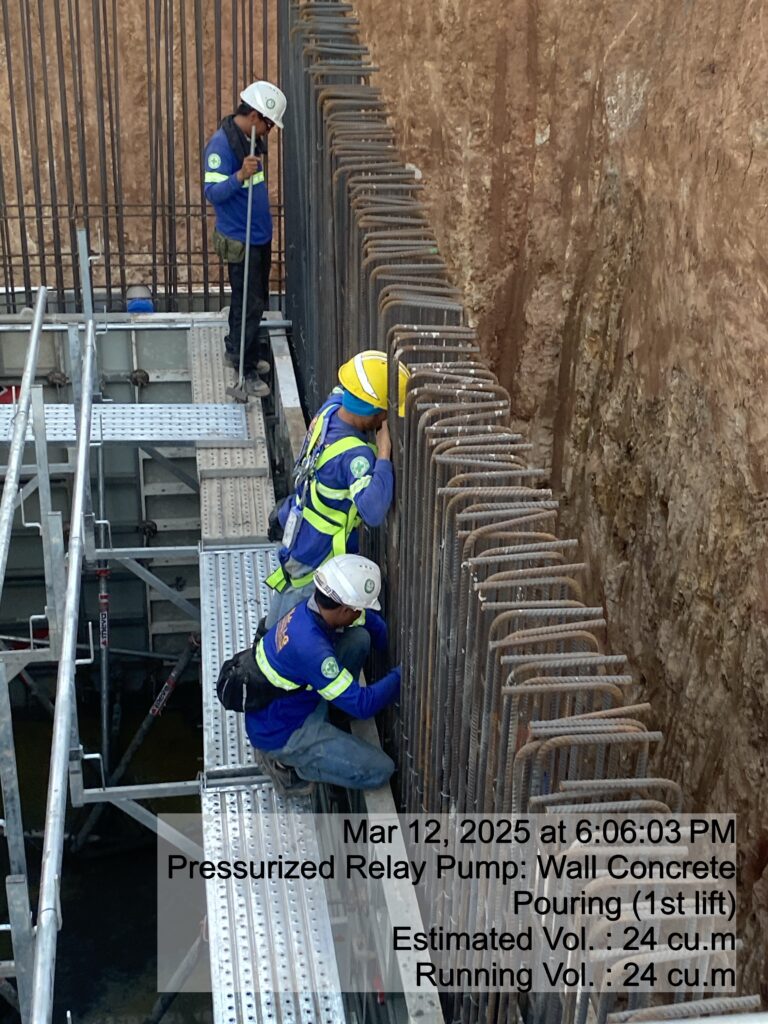

Pressurized Relay Pump: Wall Concrete Pouring (1st lift)
Estimated Vol. : 24 cu.m
Running Vol. : 24 cu.m
mr1 relay pump 2: horizontal rebar installation

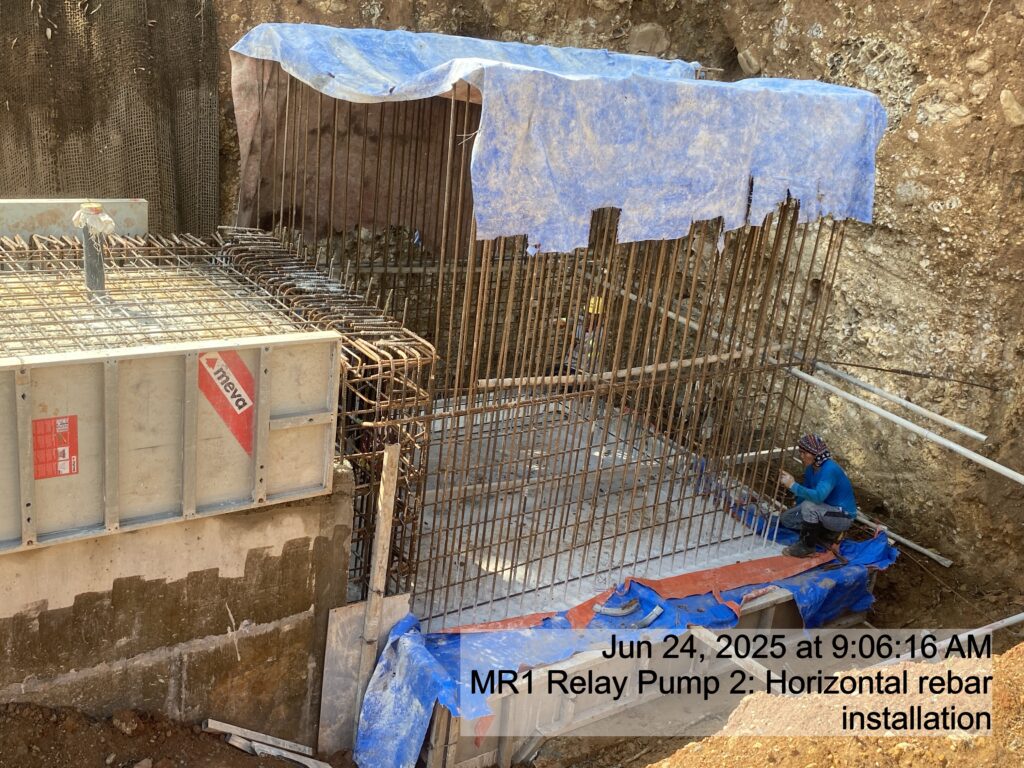

MR1 Relay Pump 2: Horizontal rebar installation

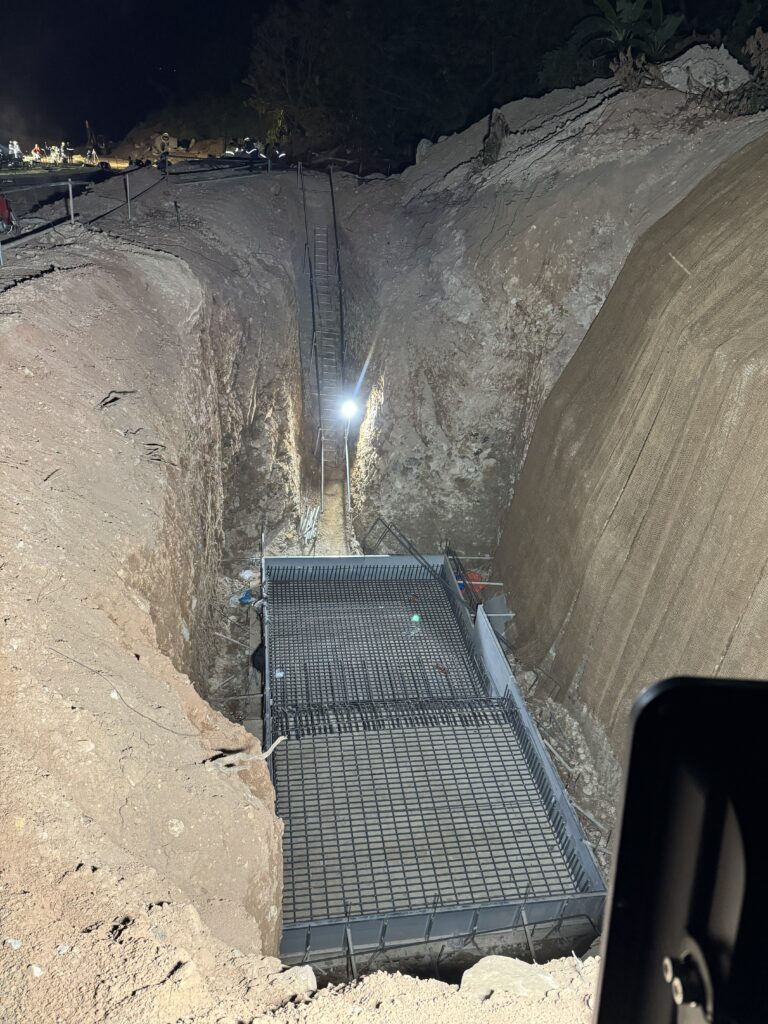

img 5992

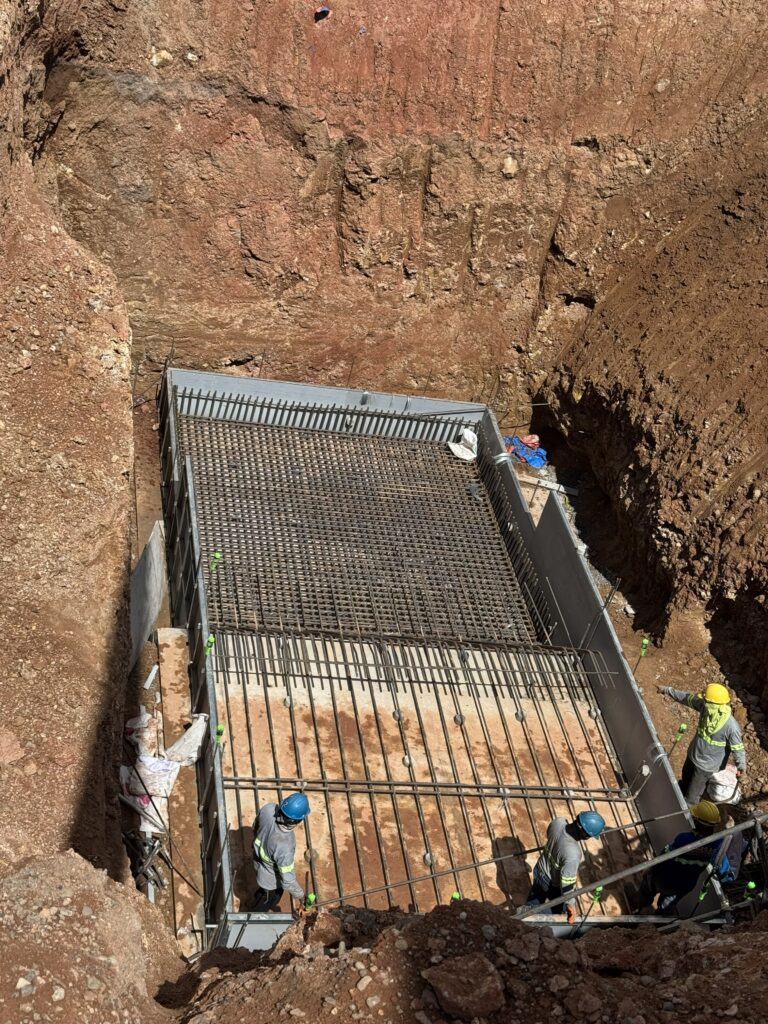

img 5751

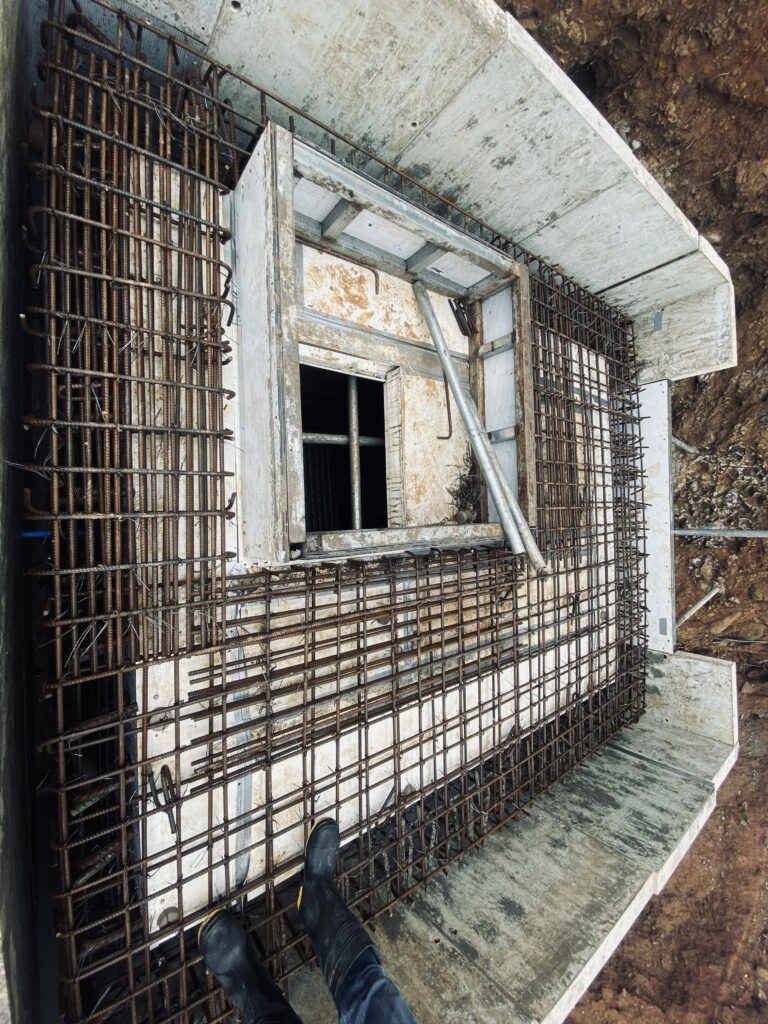

img 7770(1)

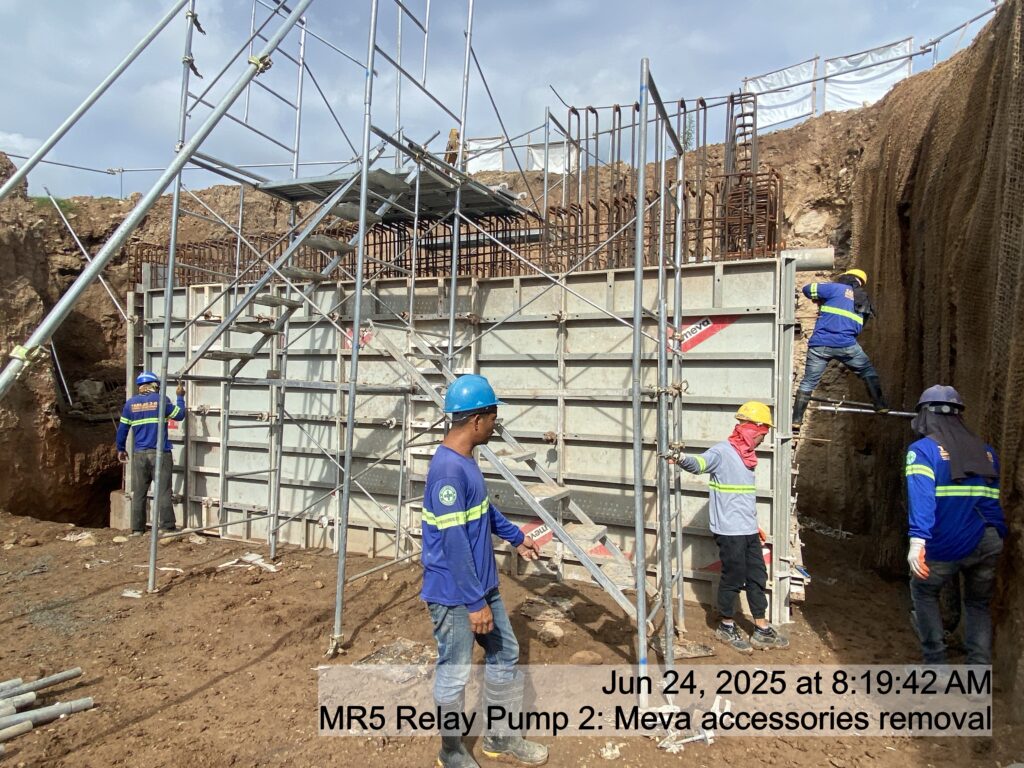

mr5 relay pump 2: meva accessories removal
MR5 Relay Pump 2: Meva accessories removal

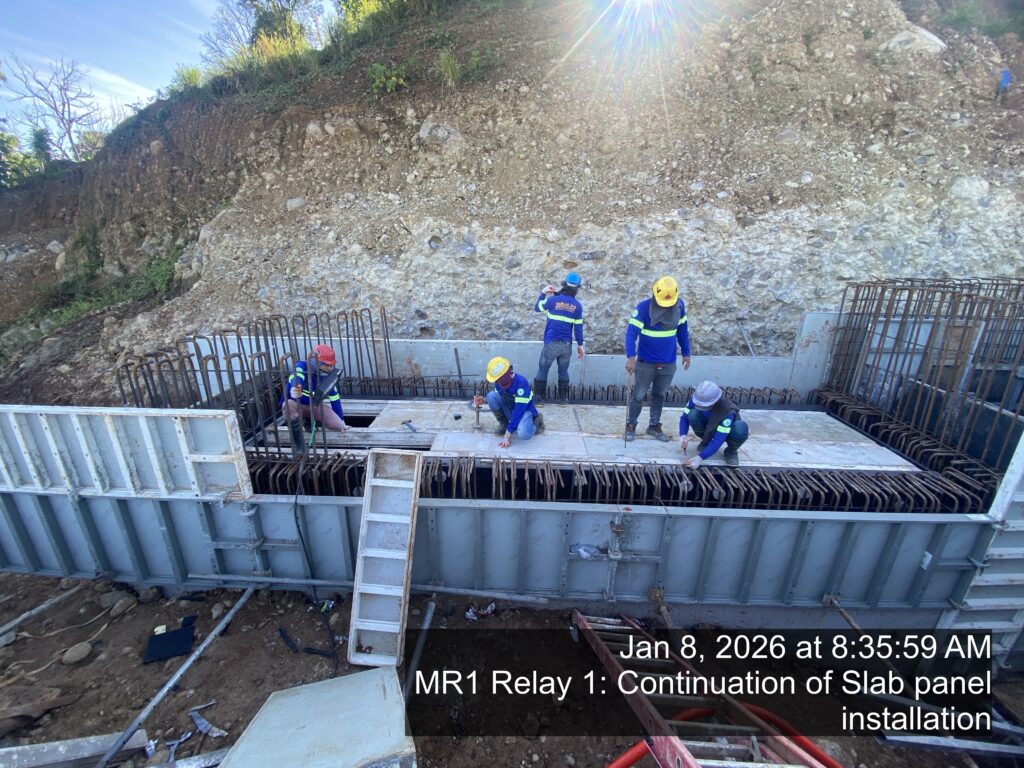

mr1 relay 1: continuation of slab panel installation
MR1 Relay 1: Continuation of Slab panel installation
pressurized relay pump: slab rebar installation

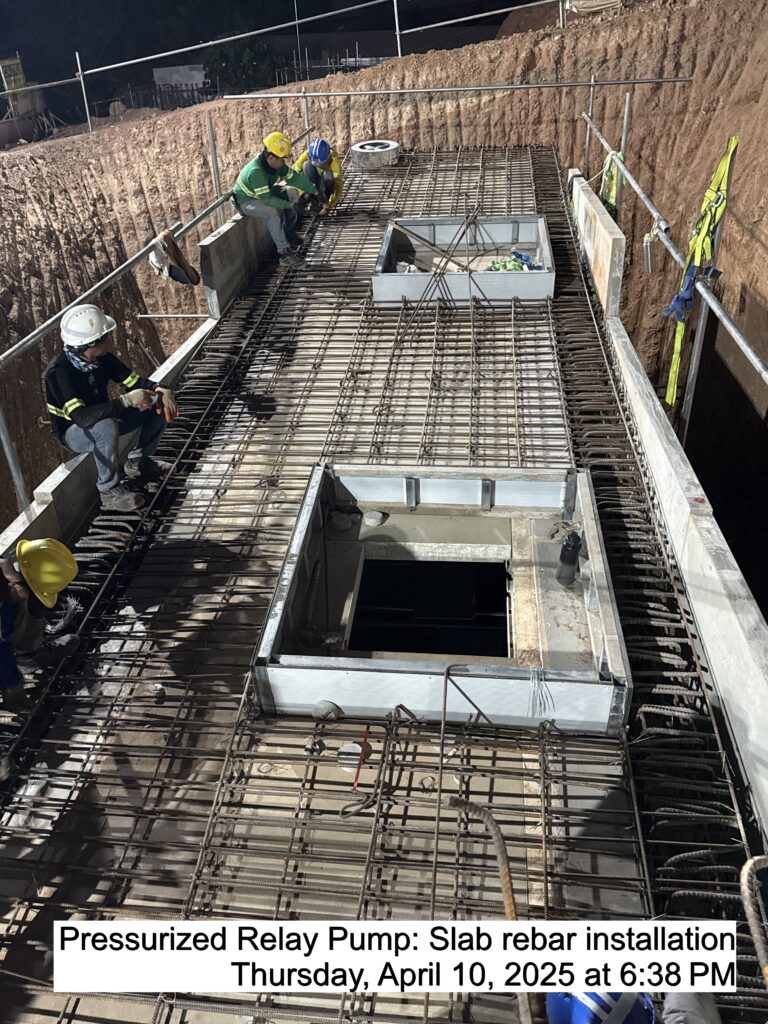

Pressurized Relay Pump: Slab rebar installation

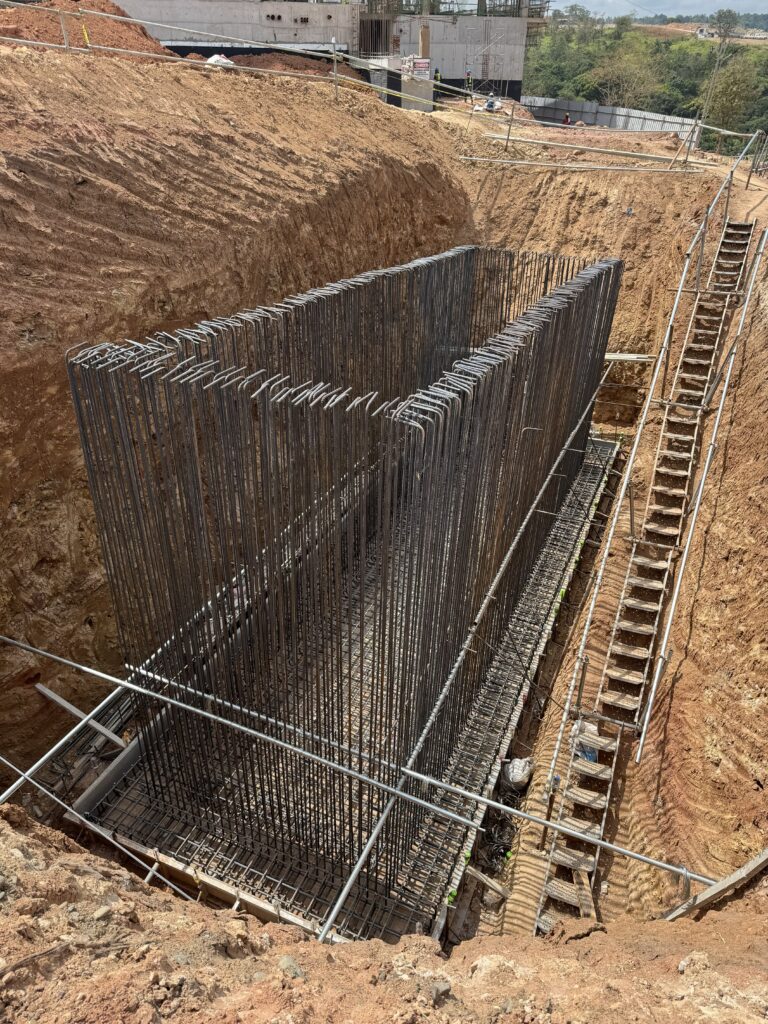

img 5933

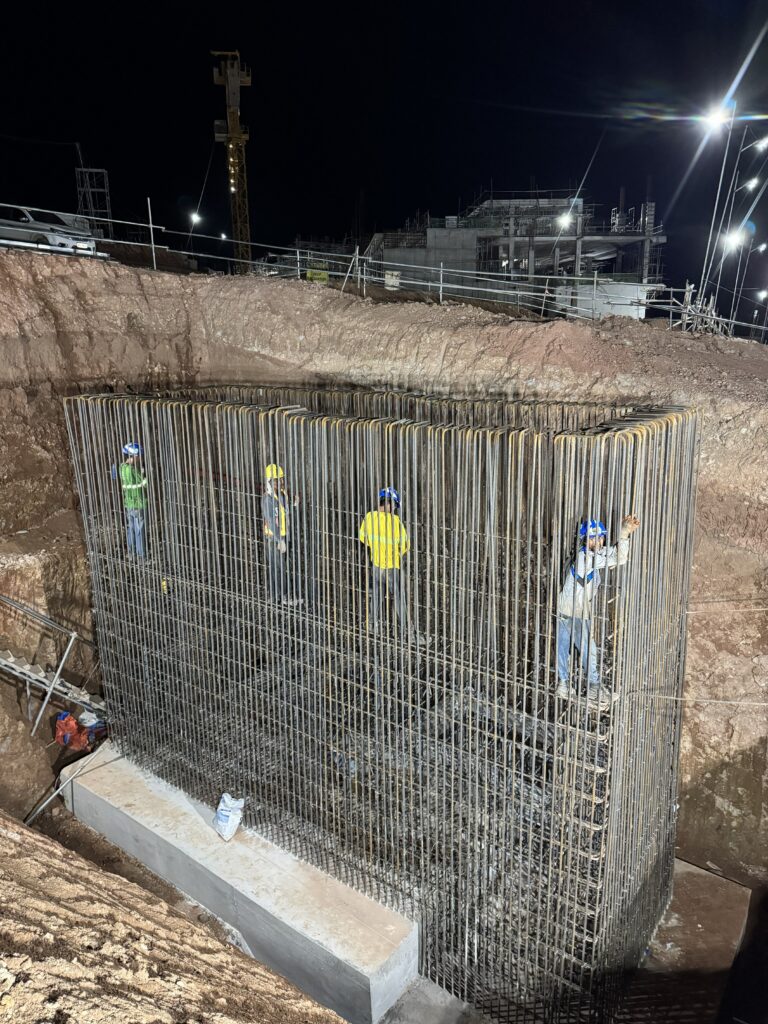

img 5844

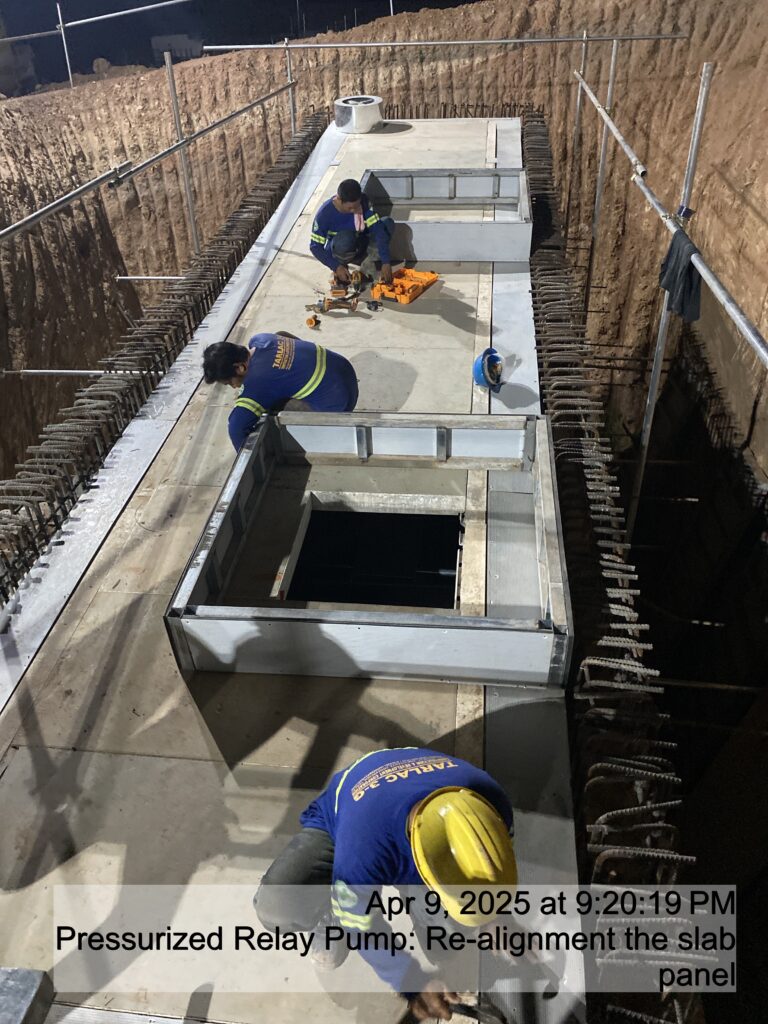

pressurized relay pump: re alignment the slab panel
Pressurized Relay Pump: Re-alignment the slab panel
transmission relay pump: wall formwork installation (2nd lift)

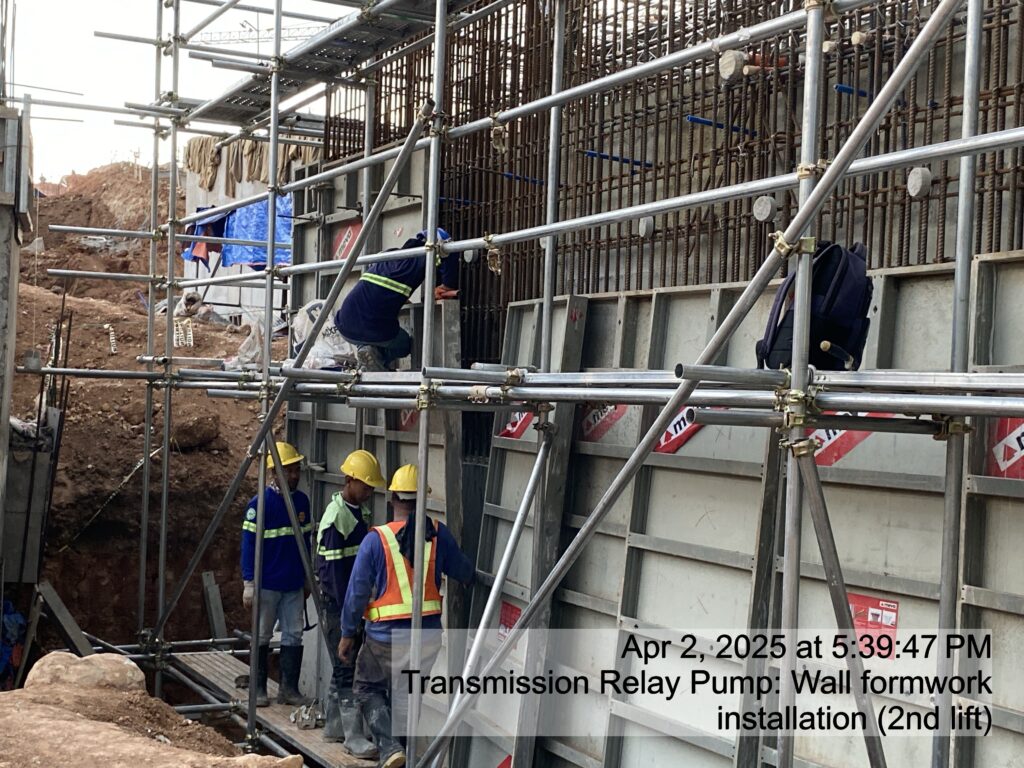

Transmission Relay Pump: Wall formwork installation (2nd lift)

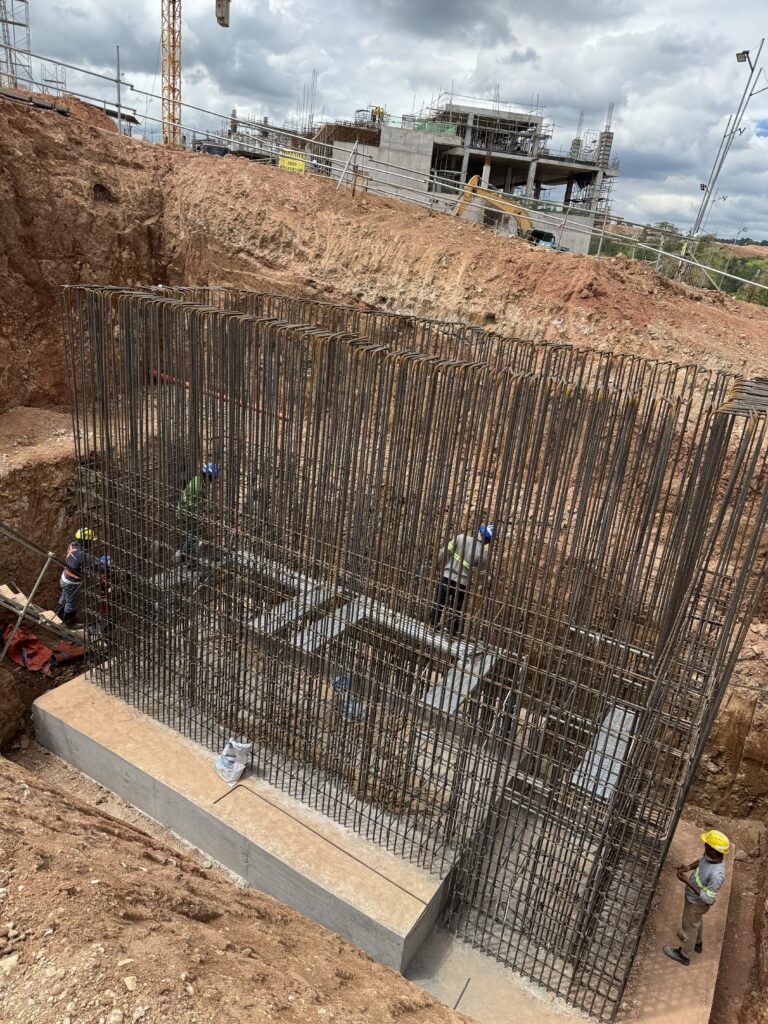

img 5837

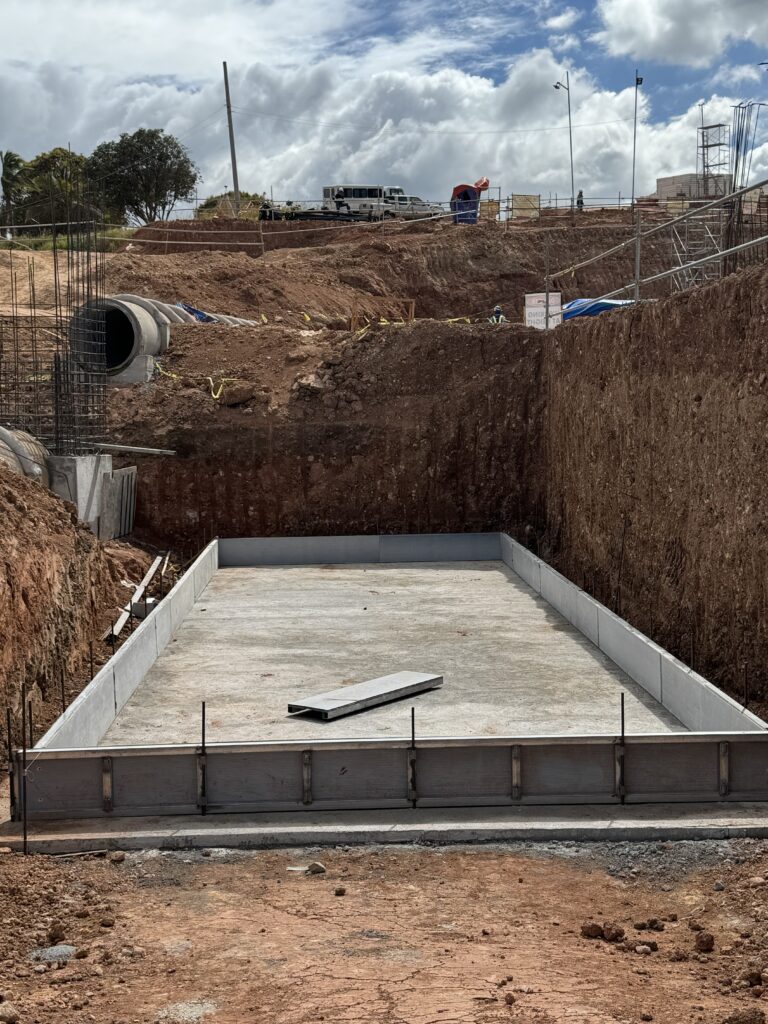

img 5741

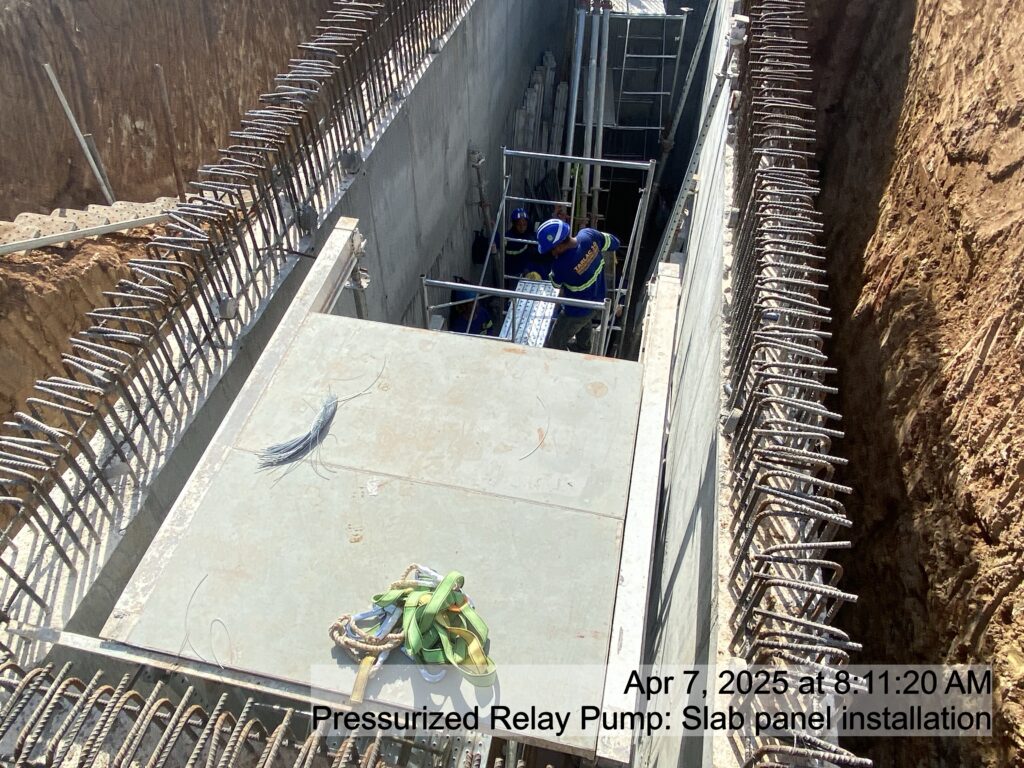

pressurized relay pump: slab panel installation
Pressurized Relay Pump: Slab panel installation
relay pump 4: formwork installation

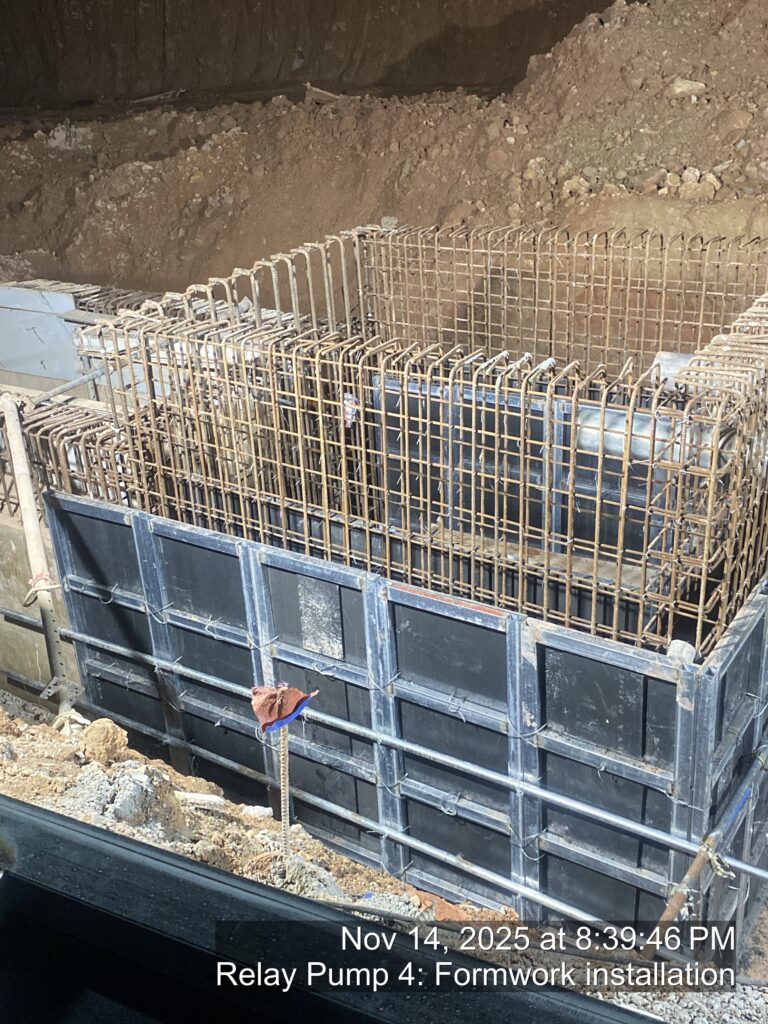

Relay Pump 4: Formwork installation

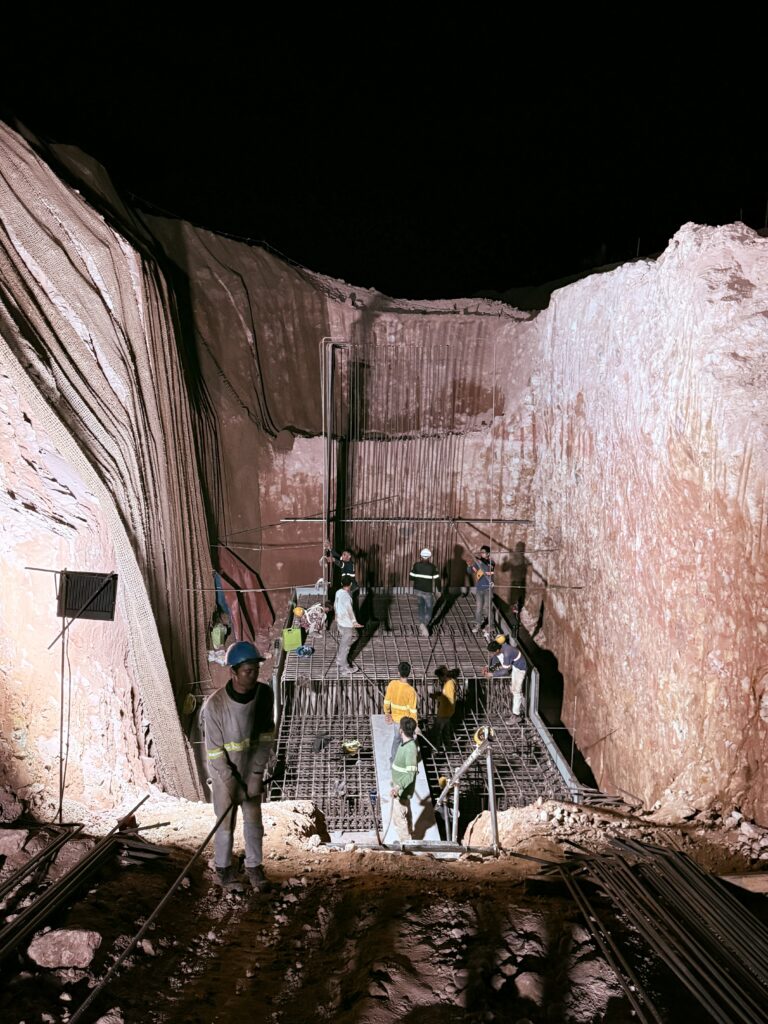

img 6555

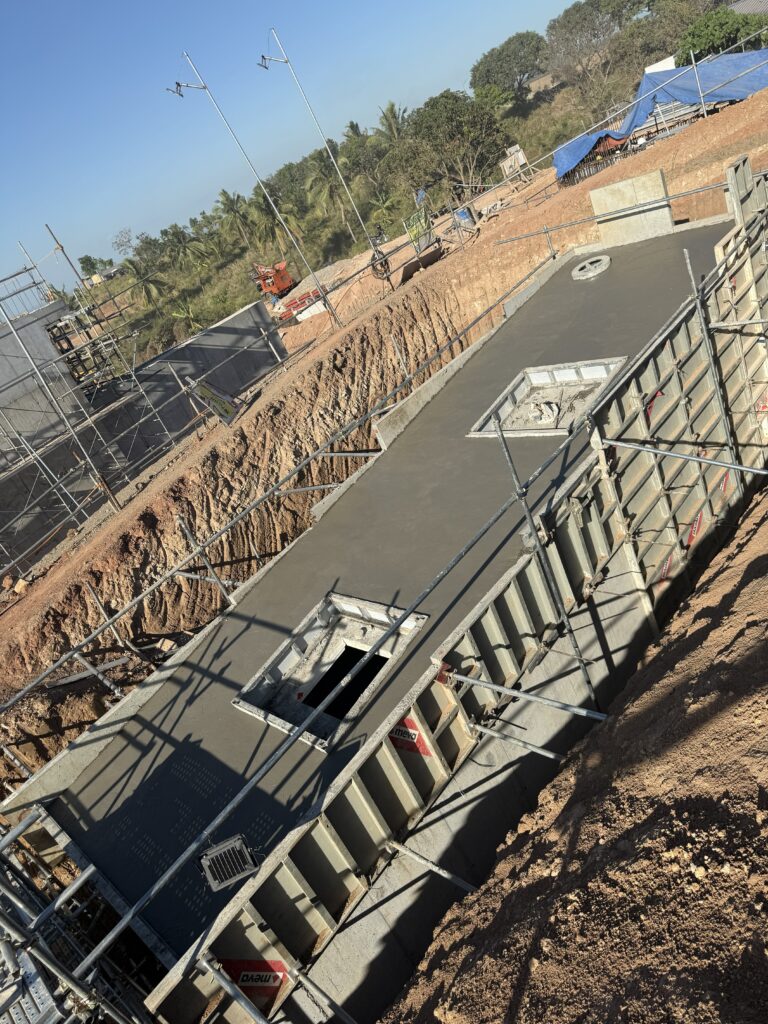

img 6722

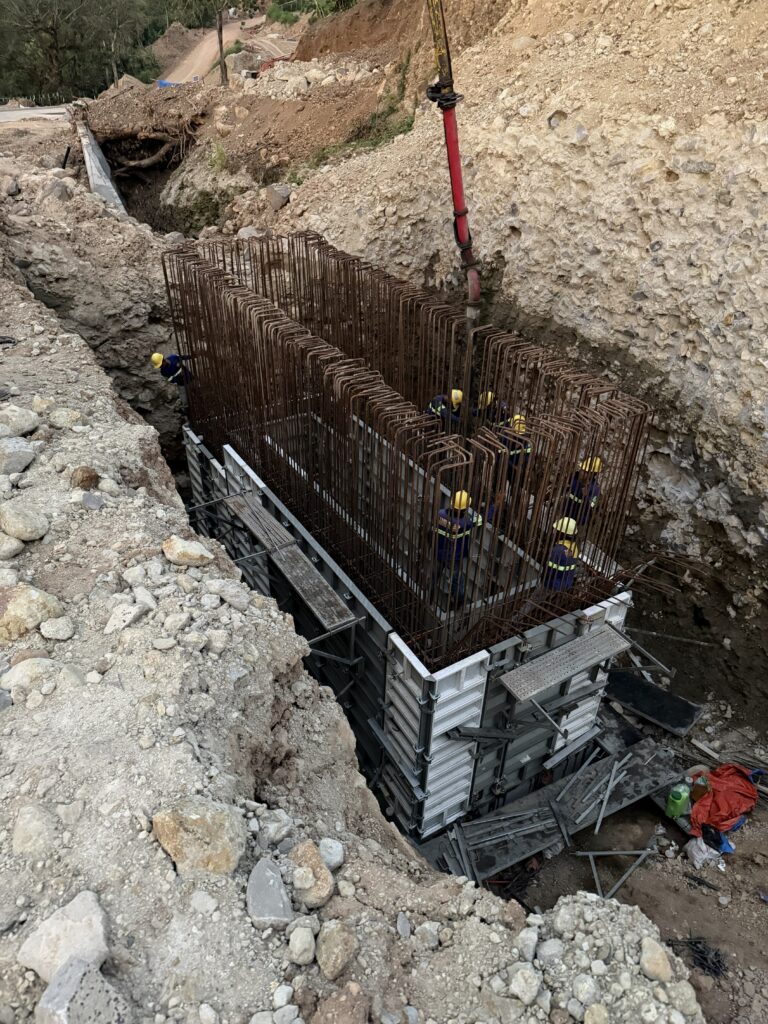

img 9692

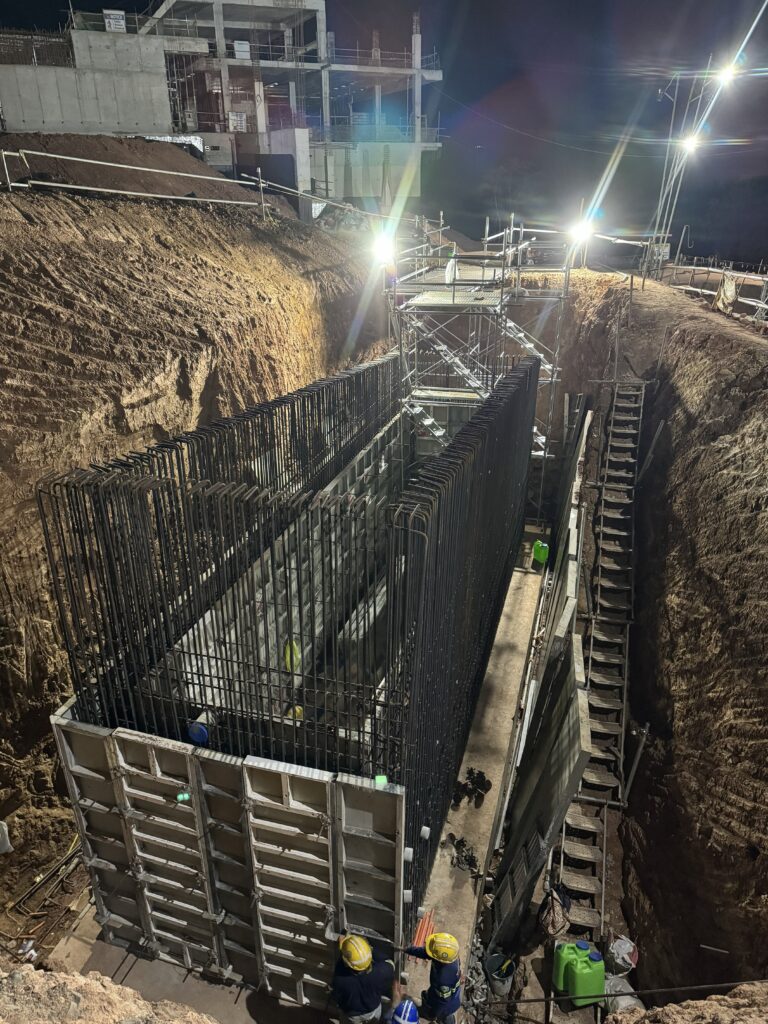

img 6179
tc 00295

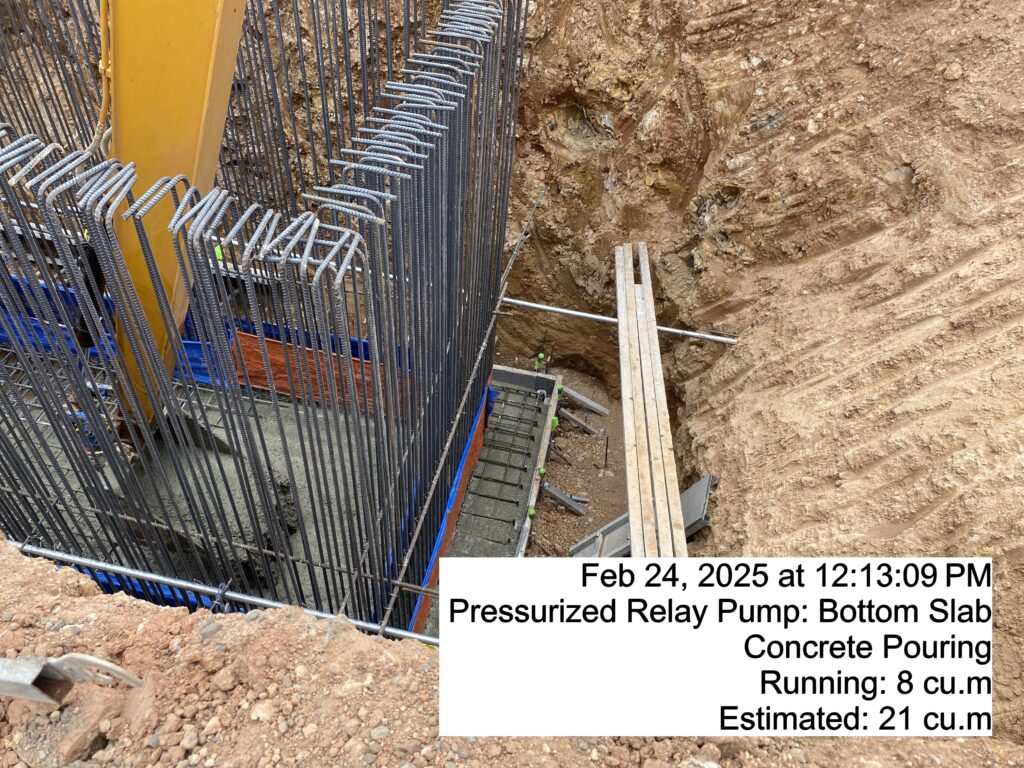

Pressurized Relay Pump: Bottom Slab Concrete Pouring
Running: 8 cu.m
Estimated: 21 cu.m

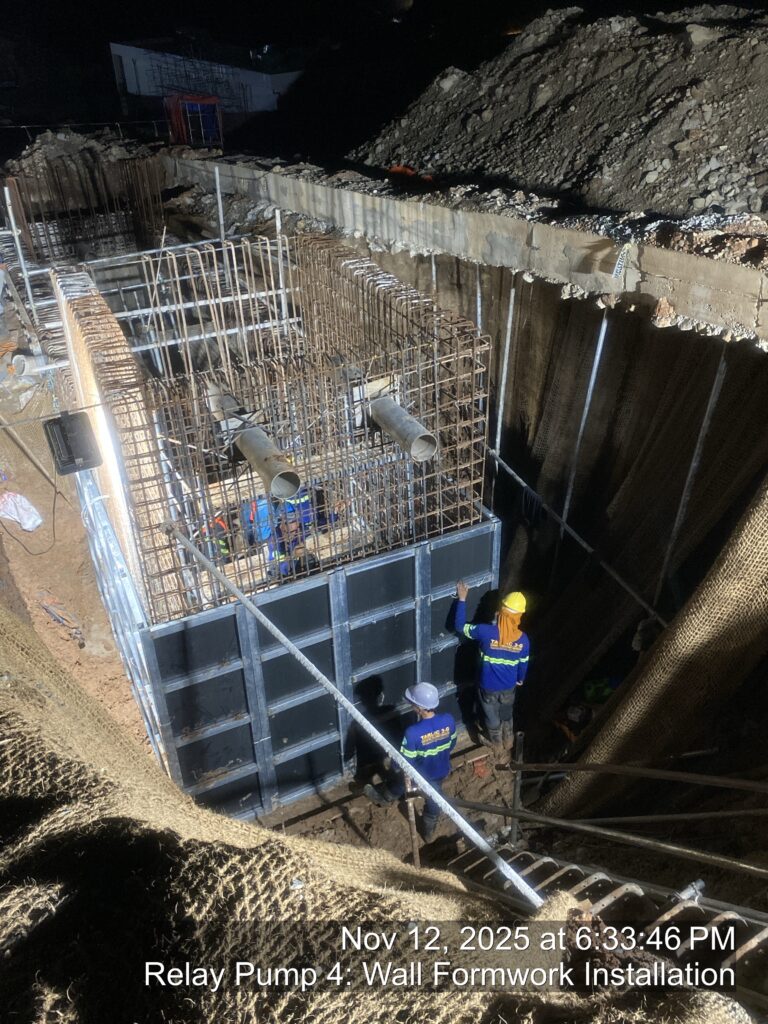

relay pump 4: wall formwork installation
Relay Pump 4: Wall Formwork Installation

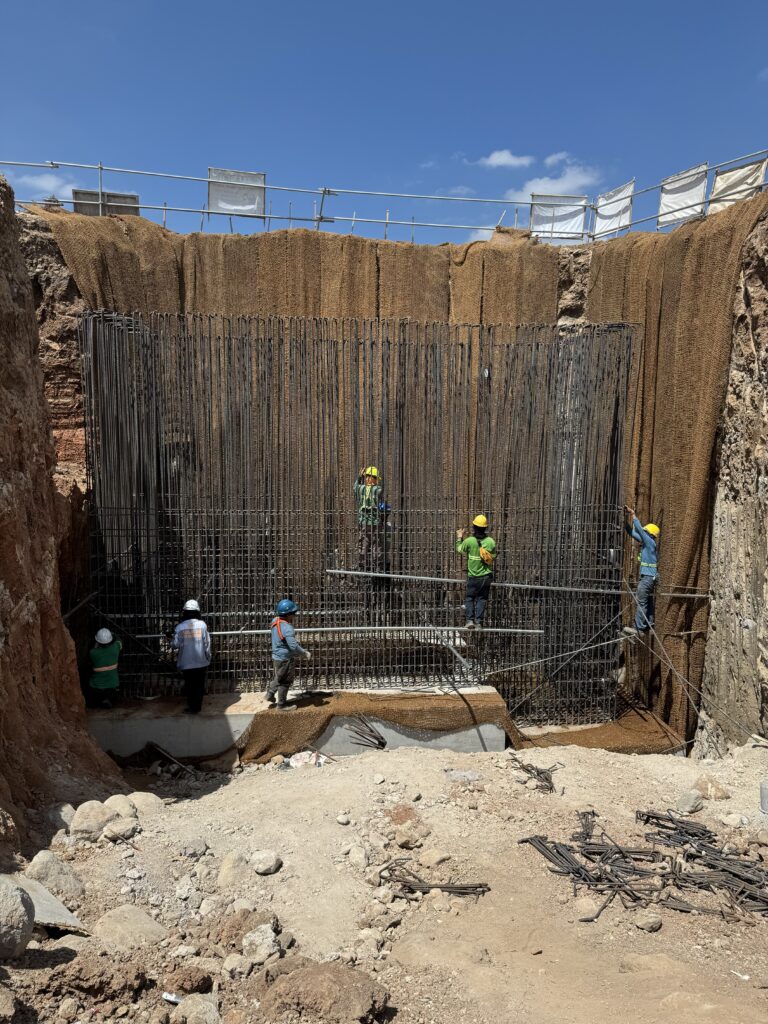

img 6214

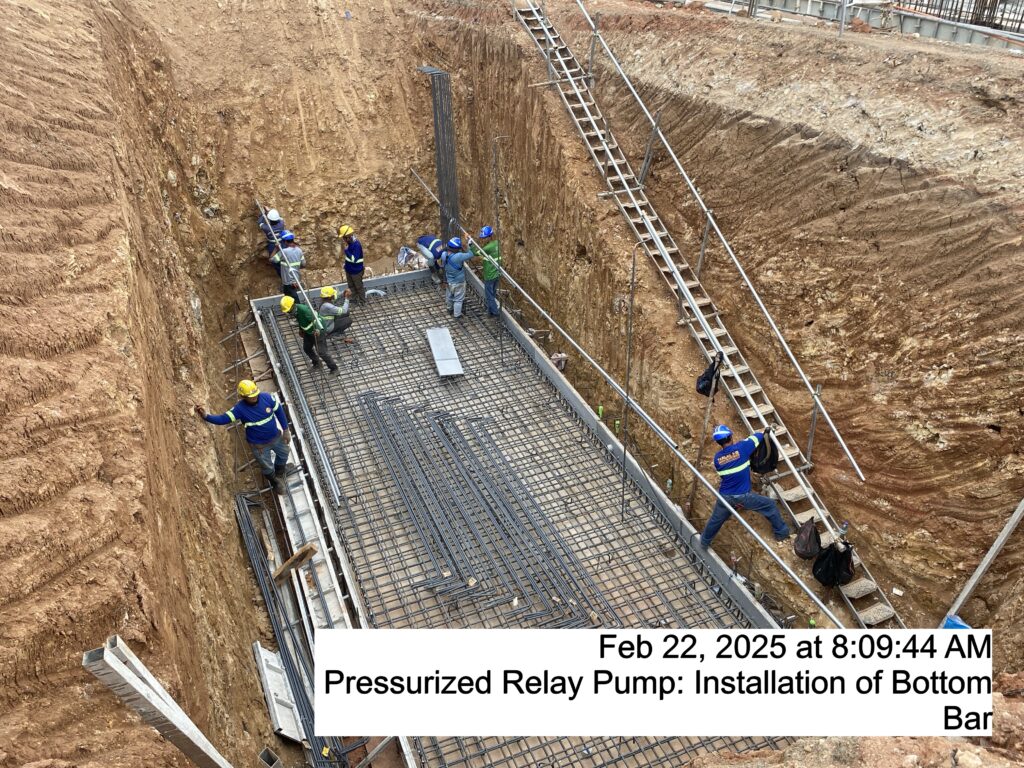

pressurized relay pump: installation of bottom bar
Pressurized Relay Pump: Installation of Bottom Bar

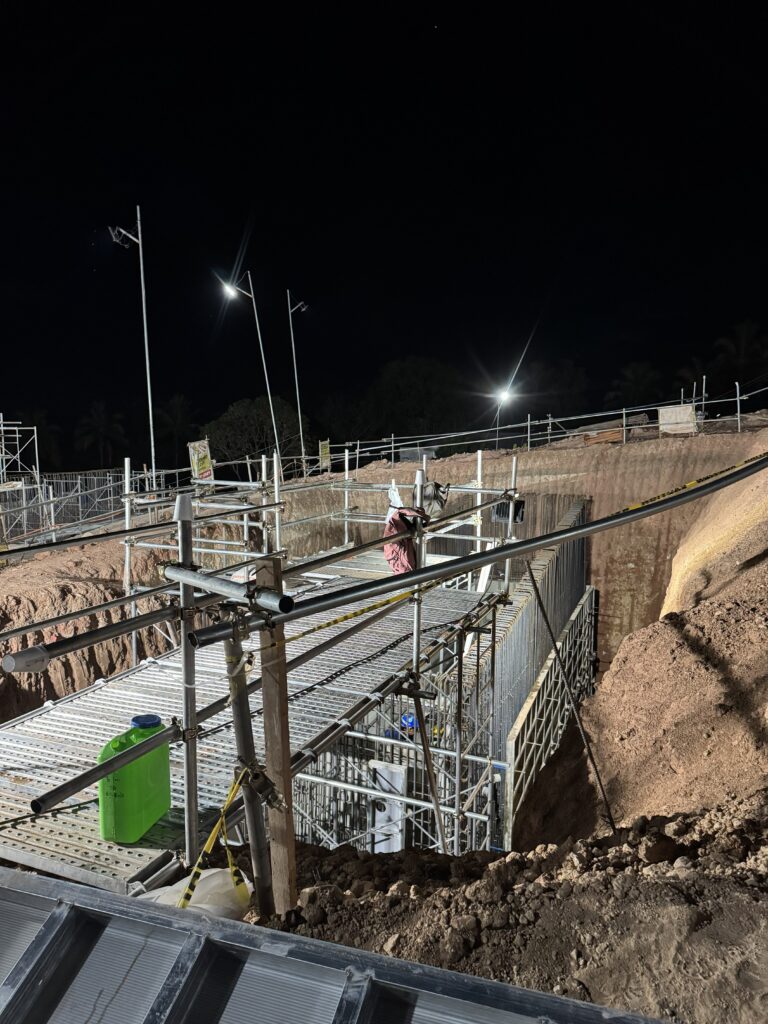

img 6181

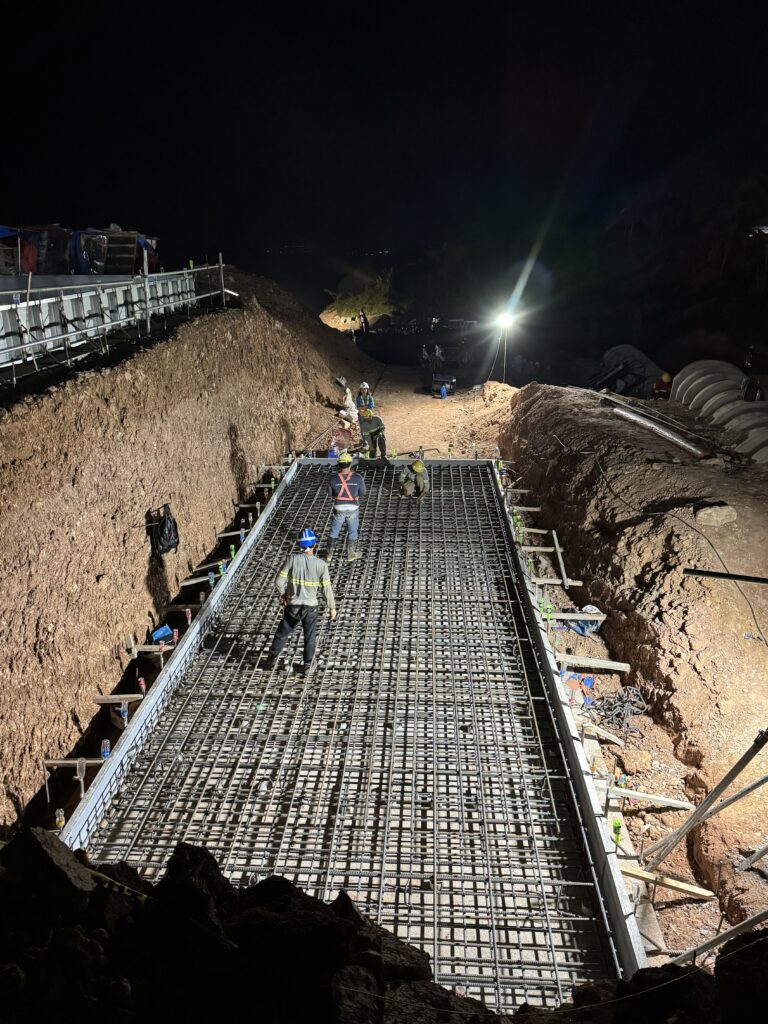

img 5846

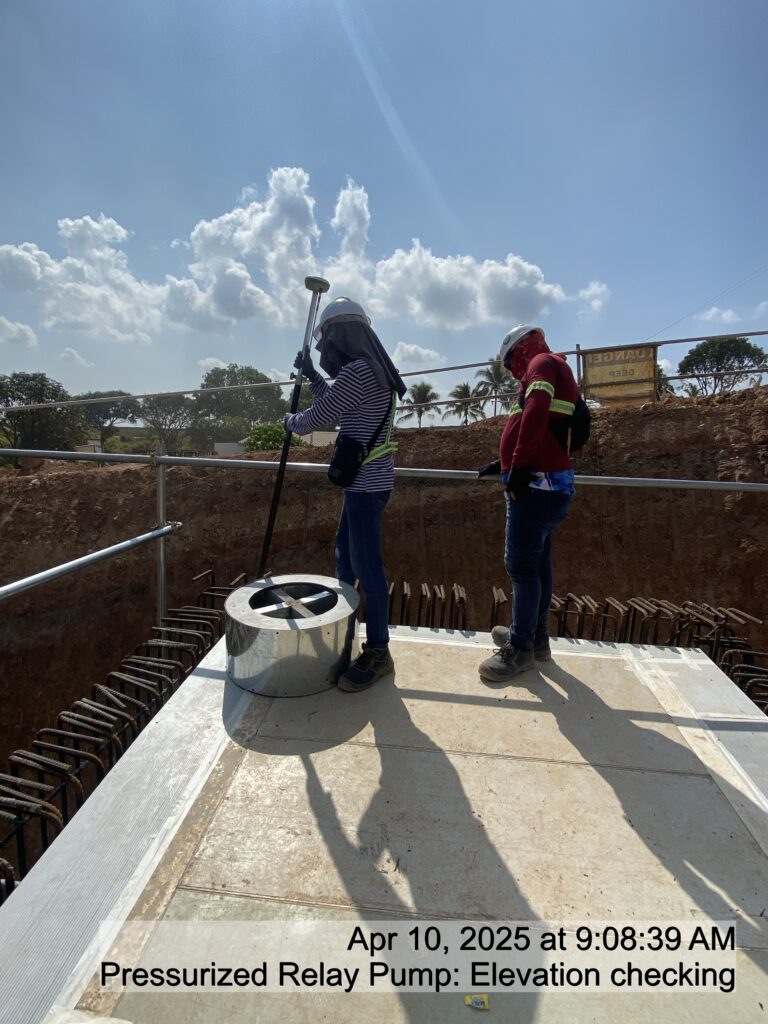

pressurized relay pump: elevation checking
Pressurized Relay Pump: Elevation checking

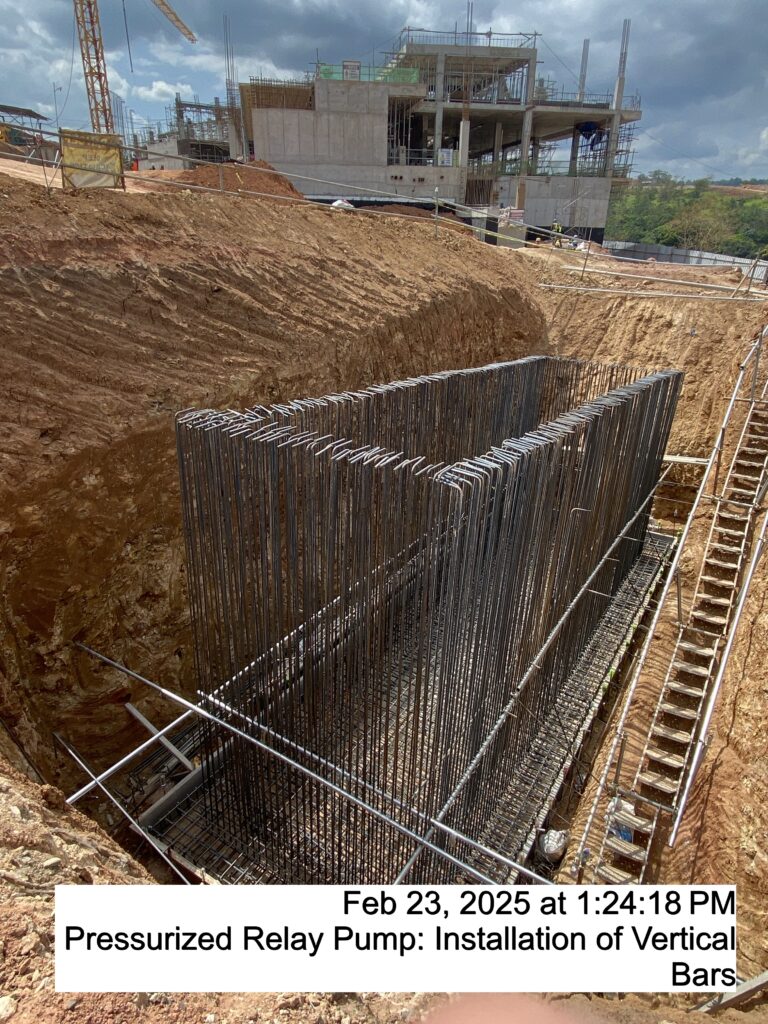

pressurized relay pump: installation of vertical bars
Pressurized Relay Pump: Installation of Vertical Bars

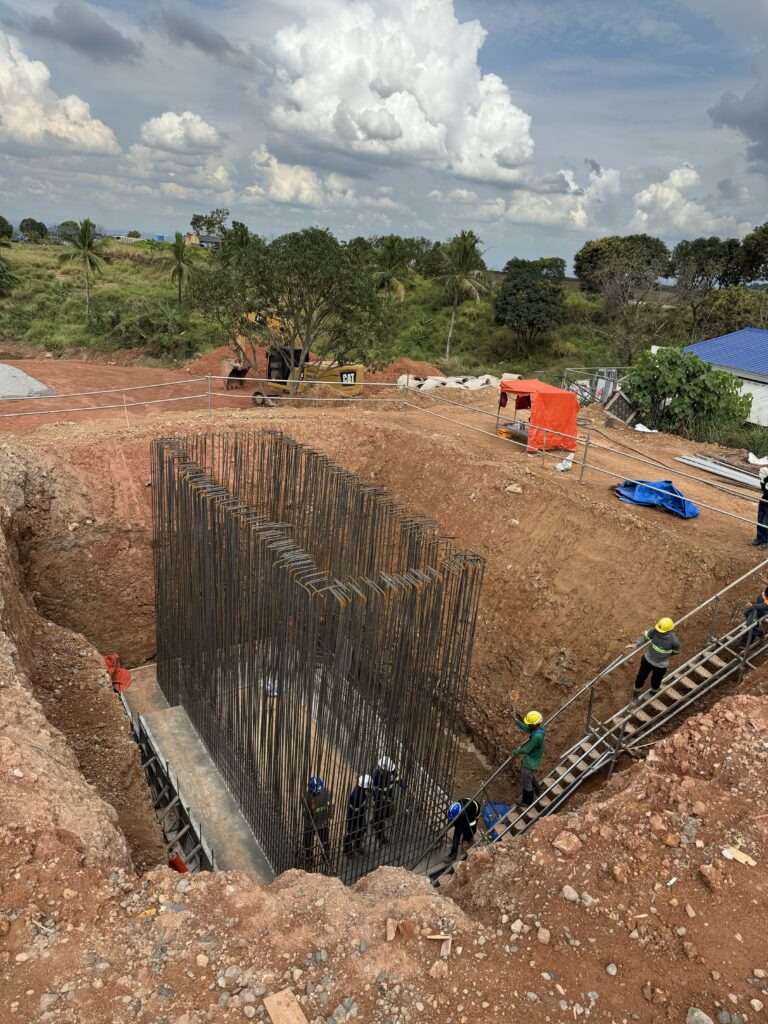

img 5818

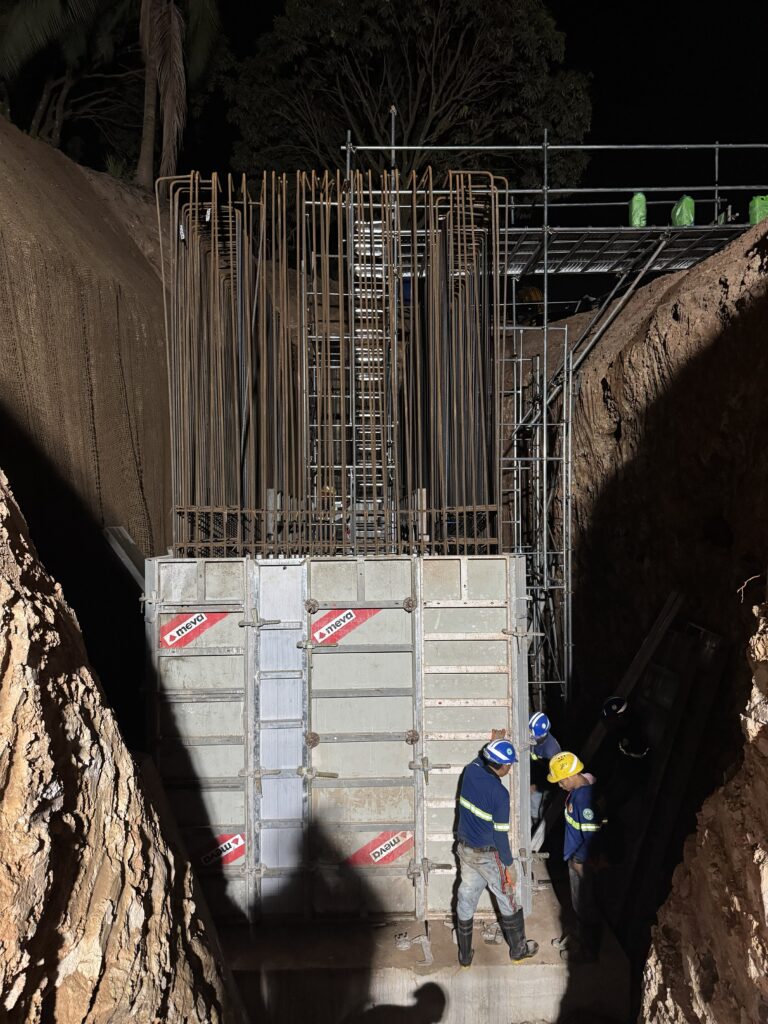

img 6505

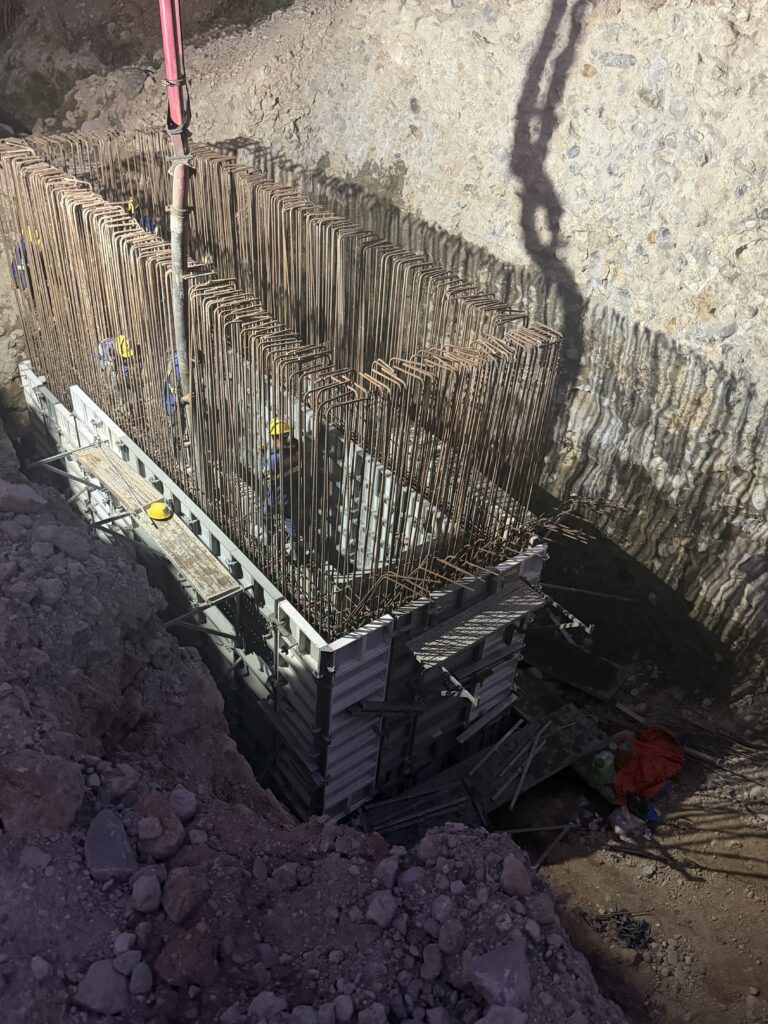

img 9694

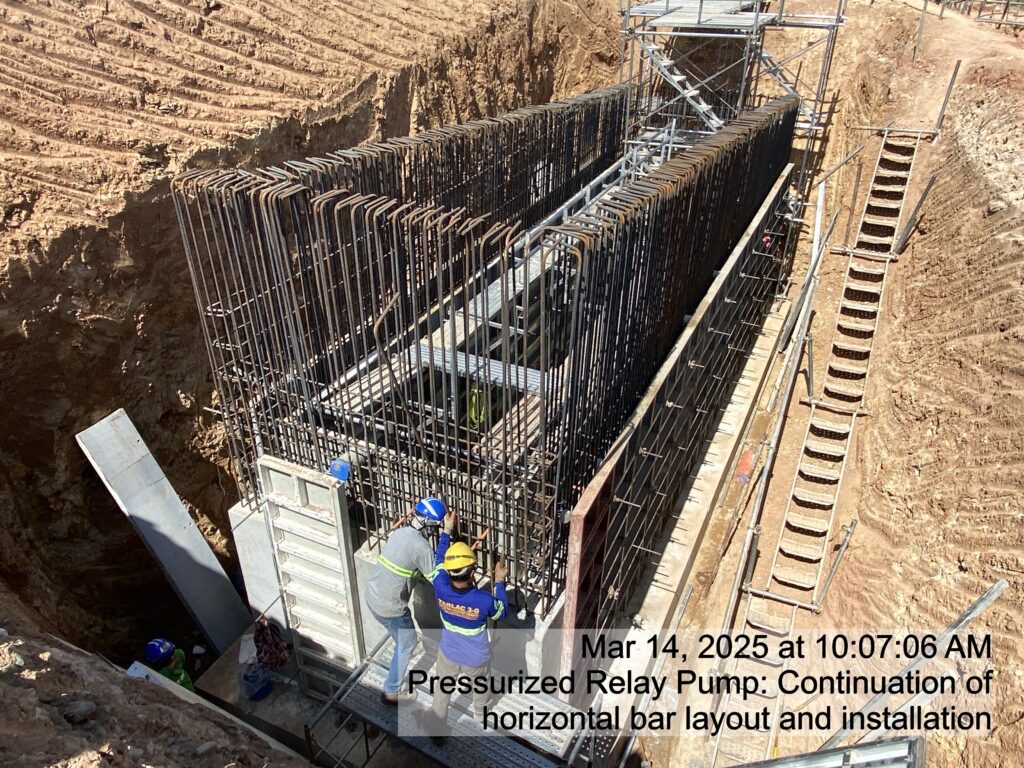

pressurized relay pump: continuation of horizontal bar layout and installation
Pressurized Relay Pump: Continuation of horizontal bar layout and installation

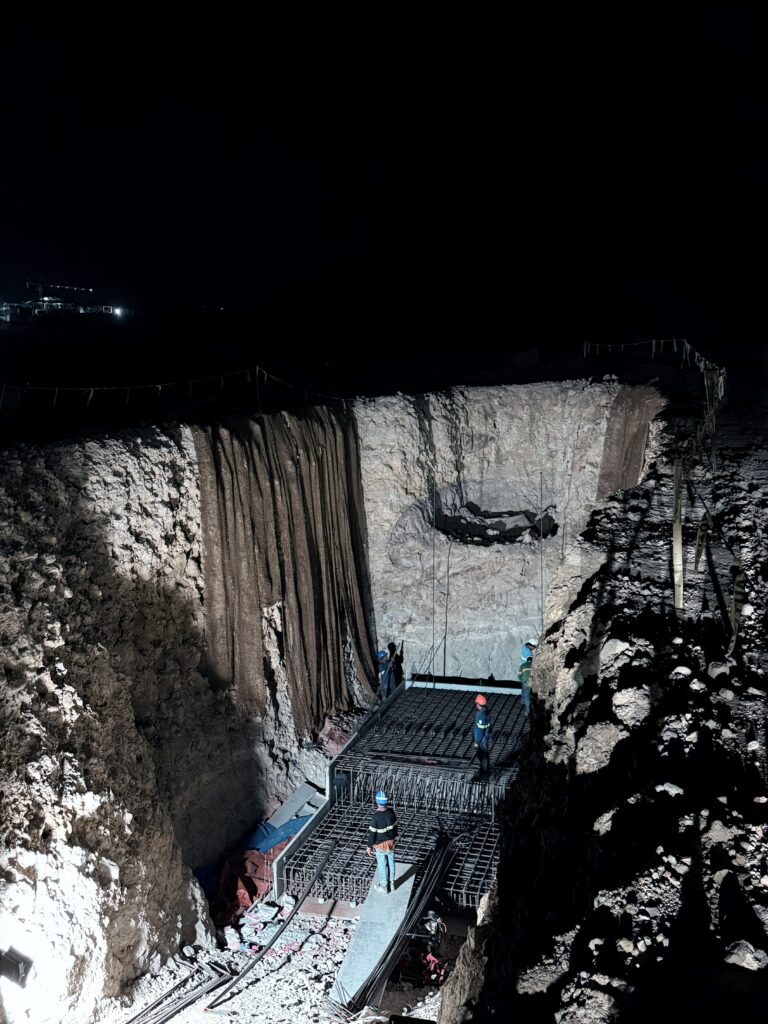

img 6552

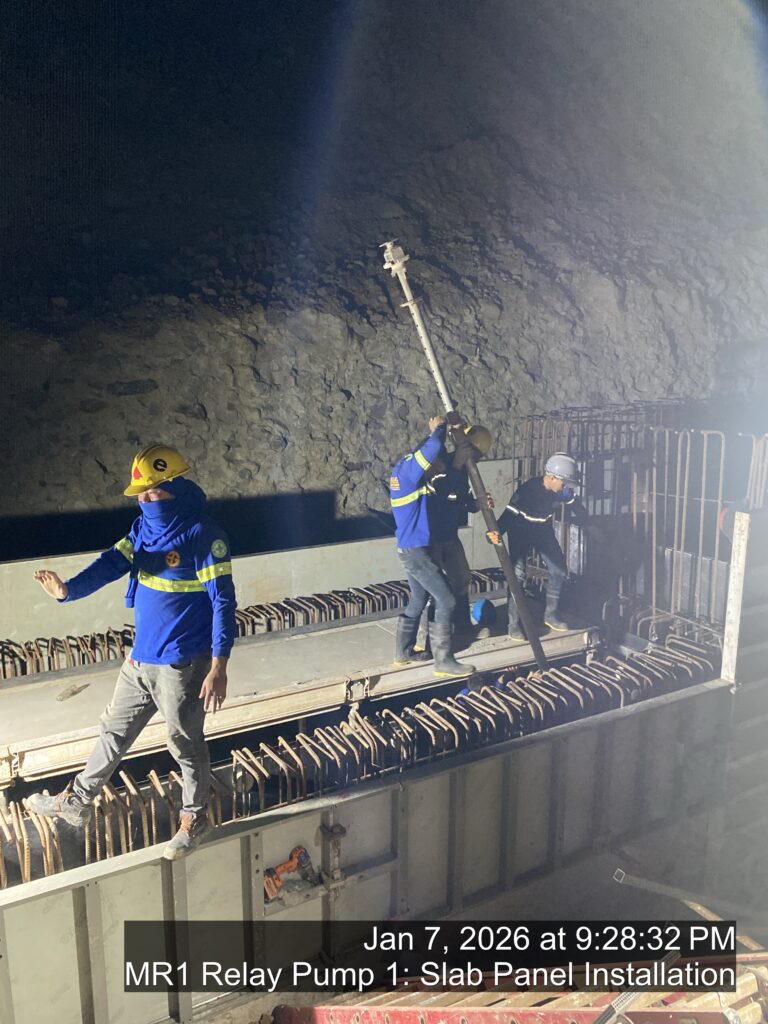

mr1 relay pump 1: slab panel installation
MR1 Relay Pump 1: Slab Panel Installation

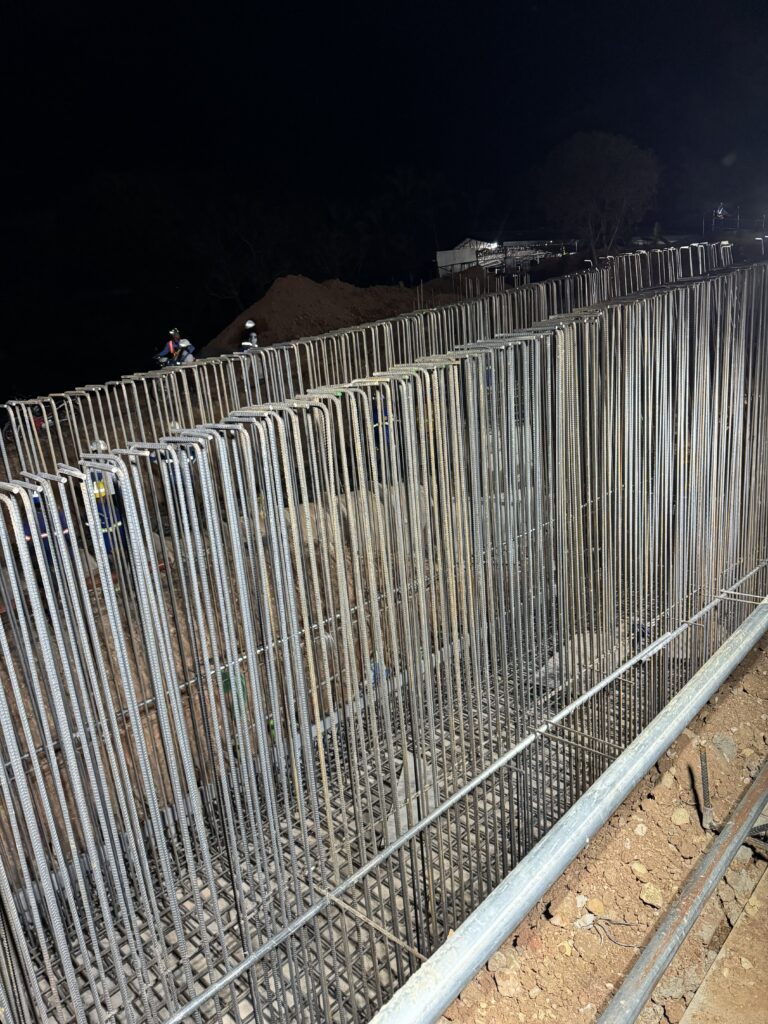

img 5854
pressurized relay pump: slab panel installation

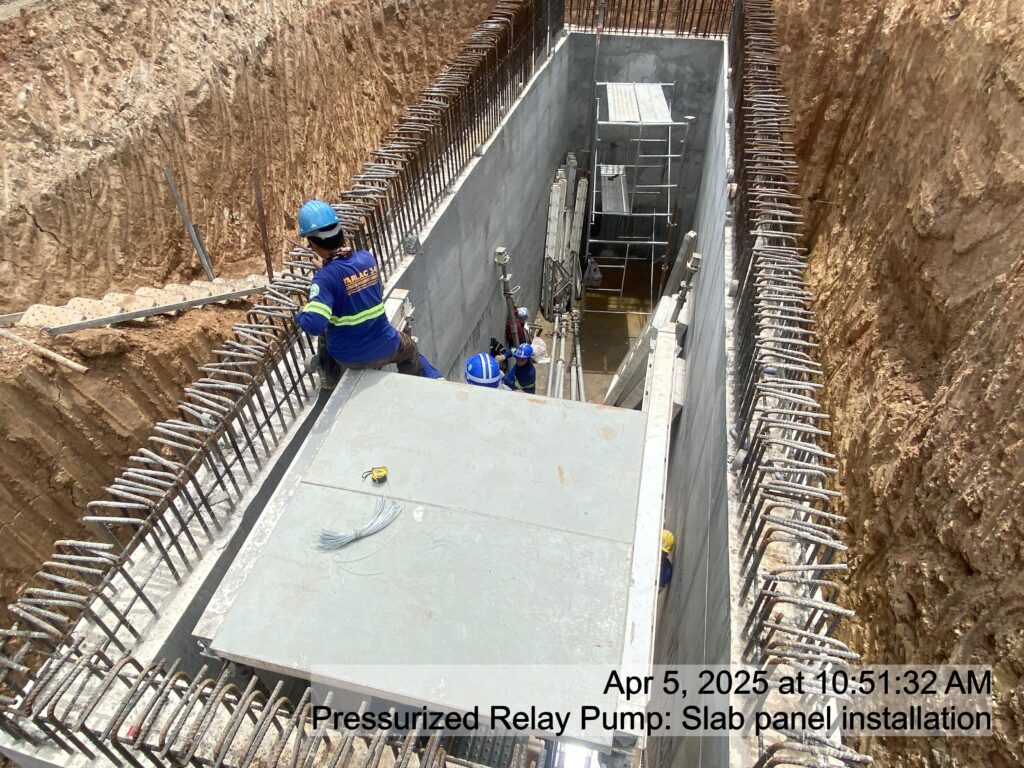

Pressurized Relay Pump: Slab panel installation
